808nm 500mw laser diode

Features:

Output power: 0.5w(CW)
Variety of stripe width
Efficient quantum well structure

Application:

Solid-state laser pumping
Medical usage
Beacons and Illumination
Free-space communication
Infrared light sources

AL808T500

CW output power (mW)

500

Peak wavelength (nm)

808±5

Spectral width (nm)

≤5

Threshold current (A)

≤0.1

Operating current (A)

≤0.65

Operating voltage (V)

1.6~2.2

Slope efficiency (W/A)

≥0.9

Beam divergence θ⊥×θ∥ (deg.)

12/40

Wavelength temperature coefficient (nm/℃)

0.3

Emitting area (μm)

50×1

Serial resistance (Ω)

≤1.5

Lifetime(h)

10000

Package

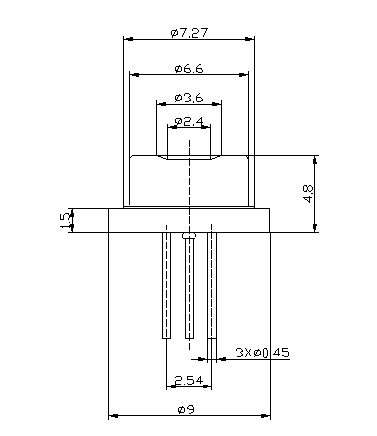

TO-5  C-mount
