808nm 1w laser diode

Features:

Output power: 1w(CW)
Variety of stripe width
Efficient quantum well structure

Application:

Solid-state laser pumping
Medical usage
Beacons and Illumination
Free-space communication
Infrared light sources

YSC808T1000

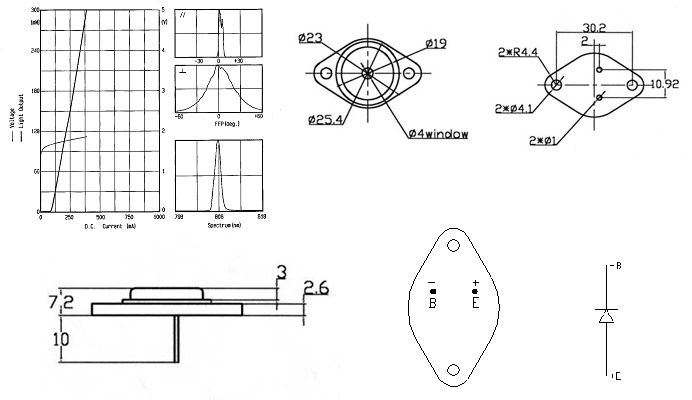

CW output power (mW)

1000

Peak wavelength (nm)

808±5

Spectral width (nm)

≤5

Threshold current (mA)

≤200

Operating current (mA)

≤1200

Operating voltage (V)

1.8~2.2

Slope efficiency (W/A)

≥0.9

Beam divergence θ_⊥×θ_∥ (deg.)

12/40

Wavelength temperature coefficient (nm/℃)

0.3

Emitting area (μm)

100×1

Serial resistance (Ω)

≤1.5

Lifetime(h)

10000

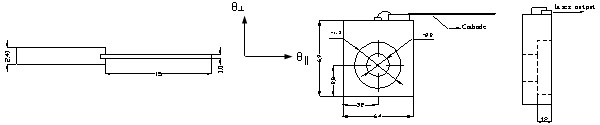

Package

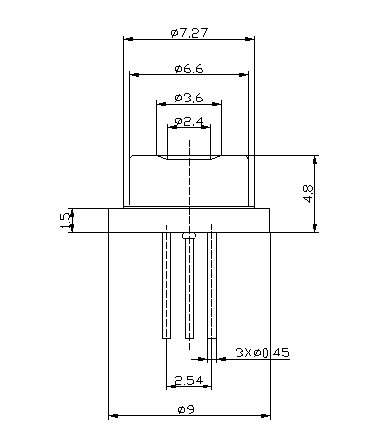

TO-5,To-3, C-mount
