808nm 2w laser diode

Features:

Output power: 2w(CW)
Variety of stripe width
Efficient quantum well structure

Application:

Solid-state laser pumping
Medical usage
Beacons and Illumination
Free-space communication
Infrared light sources

YSC808T2000

CW output power (mW)

2000

Peak wavelength (nm)

808±5

Spectral width (nm)

≤5

Threshold current (A)

≤0.8

Operating current (A)

≤2.6

Operating voltage (V)

≤2.2

Slope efficiency (W/A)

≥0.9

Beam divergence θ_⊥×θ_∥ (deg.)

12/40

Wavelength temperature coefficient (nm/℃)

0.3

Emitting area (μm)

100×1

Serial resistance (Ω)

≤1.5

Lifetime(h)

10000

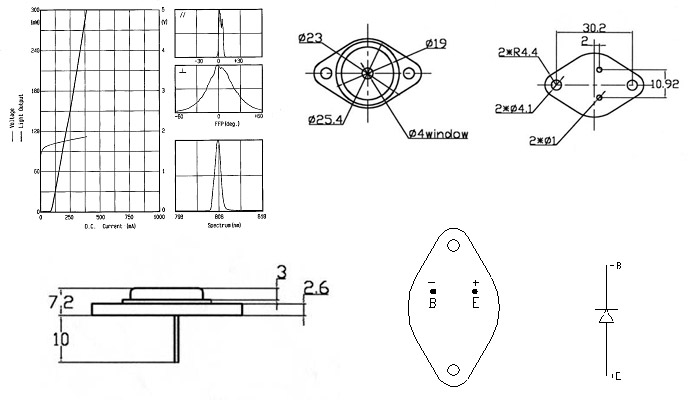

Package

C-mount, TO3
