1064nm 2w laser diode

Features:

Output power: 2W(CW)
Ausn hard solder assembly technology ,higher reliability

Standard C-Mount,CT-Mount,TO-3and customer-designed package

Optimized OE conversion efficiency

Application:

Solid-state laser pumping

Fiber Laser Pumping
Infrared night vision light sources

Medical/Dental

Illumination

YSCLD-1064T2000

CW output power (mW)

2000

Peak wavelength (nm)

1064±5

Spectral width (nm)

4.0

Threshold current (A)

≤0.3

Operating current (A)

≤2.6

Operating voltage (V)

≤1.9

Slope efficiency (W/A)

≥1.0

Beam divergence θ_⊥×θ(deg.)

≤32×8

Wavelength temperature coefficient (nm/℃)

0.3

Emitting area (μm)

100×1

Polarization mode(TE/TM)

95

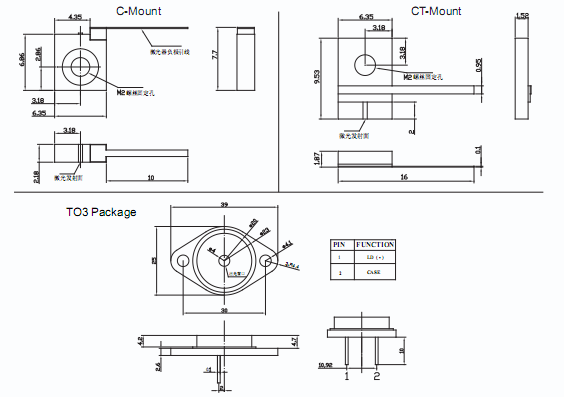

Package

TO-3,  C-Mount, CT-Mount
