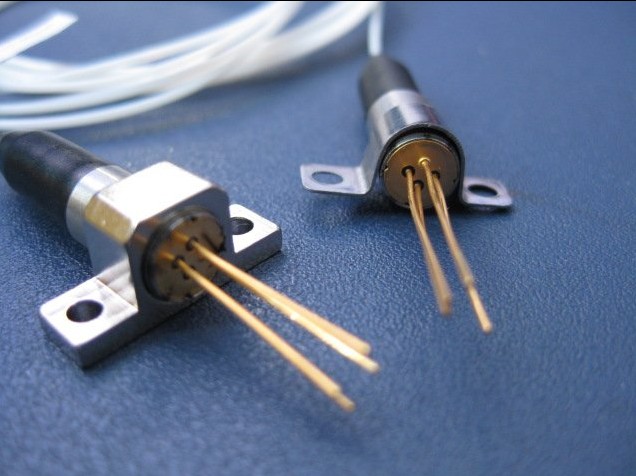

InGaAs PIN PD Module
Ø Small dark current
Ø High reliability
Applications应用
Ø RF Signal Receive
Absolute maximum ratings极限工作条件
Parameter | Symbol | Condition | Ratings | Unit |
Storage temperature | Tstg | - | -40~+100 | °C |
Operating temperature | Top | - | -40~+85 | °C |
Reverse voltage | VR | CW | 30 | V |
Soldering time | - | - | 10 | s |
Soldering Temp | - | - | 260 | °C |
Optical & electrical characteristics光电特性
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
Detection range | λ | 1100 | - | 1650 | nm | - |
Dark current | Id | - | 1 | 5 | nA | VR=5V，25°C |
Quantum efficiency | R | - | 0.85 | - | A/W | VR=5V，λ=1310 nm |
Saturation power | P | 10 | - | - | dBm | VR=5V，25°C |
Rise and Fall time | Tr/Tf | - | 0.1 | - | ns | RL=50Ω |
Reverse Voltage | VR | - | - | 15 | V | - |
Capacitance | Ct | - | - | 0.75 | pF | VR=5V |
Return Loss | RL | - | - | -45 | dB | - |
CSO二阶失真 | 62 | - | - | dB | 45~860MHz,HP8591C | |
CTB三阶失真 | 68 | - | - | dB | 45~860MHz,HP8591C | |
C/N载噪比 | 52 | - | - | dB | 45~860MHz,HP8591C |

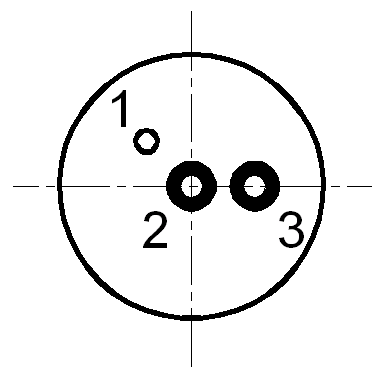

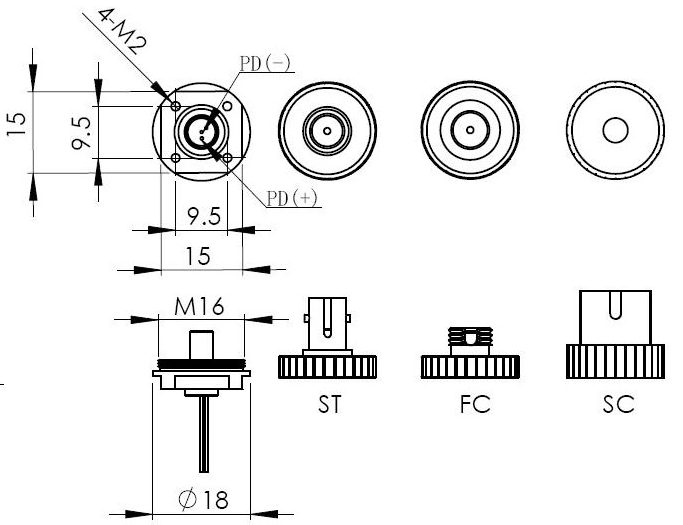

PIN assignment:（Bottom view）
pin | function |
1(case) | ground |
2 | PD(-) |
3 | PD(+) |

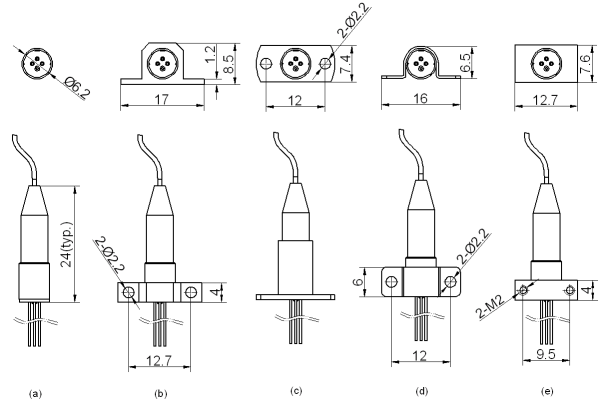

Saddle Type
