940nm 3w laser diode
940nm 3w laser diode

940nm 3w laser diode

Product ID : YSCLD-940T3000
Product Tags :
Product Description




940nm High-Power Laser Diode (AL940T3000)

Features:

Output power: 3W(CW)
Variety of stripe width
Efficient quantum well structure
C-Mount Package


Application:

Solid-state laser pumping
Medical usage
Beacons and Illumination
Free-space communication
Infrared light sources





Specifications:

Parameter

Value

AL940T3000

CW output power (mW)

3000

Peak wavelength (nm)

975±10

Spectral width (nm)

5

Threshold current (A)

0.8

Operating current (A)

3.8

Operating voltage (V)

2.2

Slope efficiency (W/A)

0.85

Beam divergence θ×θ(deg.)

40×12  or  ≤12×12

Wavelength temperature coefficient (nm/)

0.3

Emitting area (μm)

200×1

Serial resistance (Ω)

≤0.35

Polarization mode

TE

Package

C-Mount

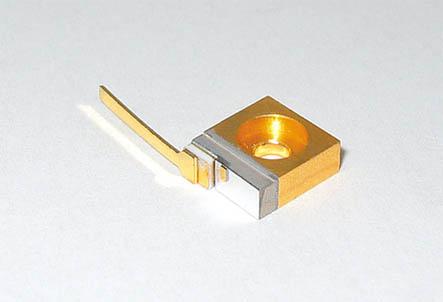

C-mount Packing
