YISINC OPTO CO.,LIMITED

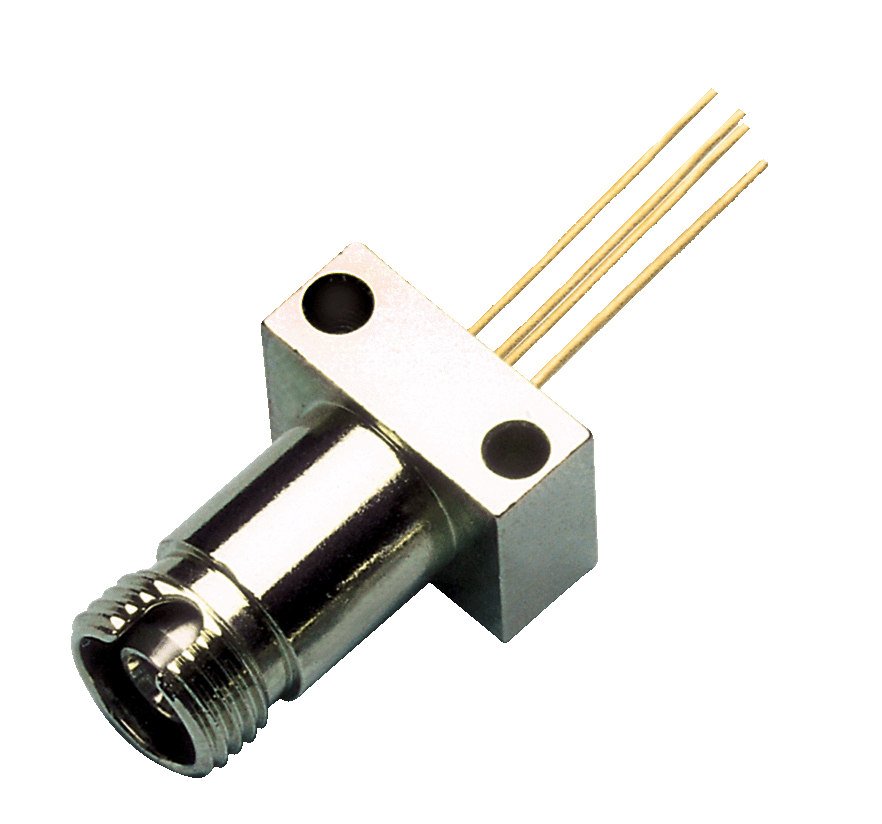

Ø 850nm VCSEL LD
Ø Low Threshold & operation current
Ø High Bandwidth
Ø High Reliability
Ø Wide temperature range operation
(Tc=0 to+85°C)
Applications
Ø data transmit
Ø Light source
Absolute maximum ratings
Parameter | Symbol | Value | Unit |
Reverse voltage | VR(LD) | 5 | V |
Forward current | IF(PD) | 12 | mA |
Operating temperature | TOP | 0 ～ +85 | ℃ |
Storage temperature | TST | -40 ～ +85 | ℃ |
Soldering temperature/time | - | 260/10 | ℃/S |
Optical & electrical characteristics
Parameter | Symbol | Test condition | Min. | Typ. | Max. | Unit |
Output power | Pout | 10mA,CW | 0.5 | 1.0 | 2 | mW |
Center wavelength | λ | 10mA | 830 | 845 | 860 | nm |
Ith Temperature Variation | 0~85℃ | - | -1.5 | - | 1.5 | mA |
Threshold current | Ith | CW | - | 3.5 | 6.0 | mA |
Forward voltage | Vf | 10mA | - | 2.0 | 2.2 | V |
Differential Resistance | Rf | 10mA | - | 35 | 50 | Ω |
Rise/Fall Time | tr/tf | 20~80% | - | 0.12 | - | ns |
PIN assignment:
Saddle Type:

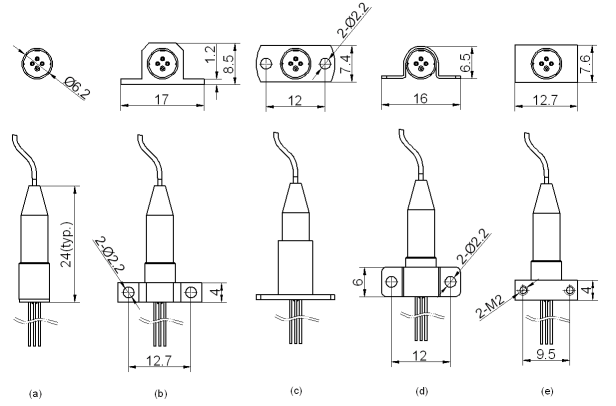

Pigtail：

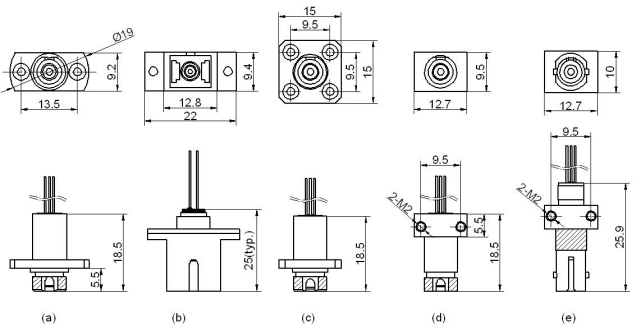

Receptacle：
