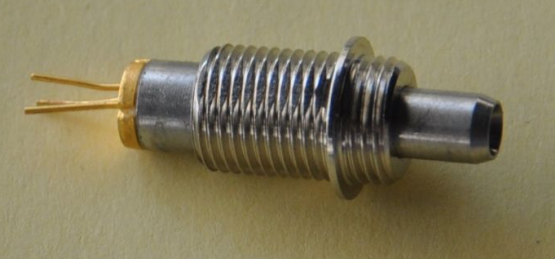

650/635nm laser diode module
Ø MQW 650/635nm FP LD
多量子阱650/635nm FP 激光器
Ø High output power
高功率输出
Ø Wide temperature range operation
(Tc= -10 to+65°C)
宽工作温度范围
Applications
Ø Light Source 光源
Ø Data Transmit 数据传输
Absolute maximum ratings绝对最大额定值
Parameter参数 | Symbol | Value | Unit |
LD Forwardcurrent LD正向电流 | IF(LD) | 100 | mA |
LDReverse voltage LD反向电压 | VR(LD) | 2 | V |
PD Forwardcurrent PD正向电流 | IF(PD) | 2 | mA |
PDReverse voltag PD反向电压 | VR(PD) | 25 | V |
Operating temperature 工作温度 | TOP | -10 ～ +65 | ℃ |
Storage temperature | TST | -40 ～ +85 | ℃ |
Soldering temperature/time | - | 260/10 | ℃/S |
Optical & electrical characteristics 光电特性
Parameter 参数 | Symbol | Test condition | Min. | Typ. | Max. | Unit |
Output power | Pout | Iop=Ith+15 | 0.2 | 1.0 | 3.0 | mW |
Center wavelength | λ | CW | 640 | 650 635 | 660 | nm |
Spectral width | Δλ | CW | - | - | 5 | nm |
Threshold current | Ith | CW | 15 | 20 | 30 | mA |
Operating voltage | Vop | CW， Iop=Ith+15 | - | 2.2 | 2.6 | V |
Rise/ Fall time | Tr/Tf | CW | - | - | 0.5 | ns |
Monitor current | Im | CW | 0.1 | 0.2 | 0.4 | mA |
PIN assignment: 管脚排布
